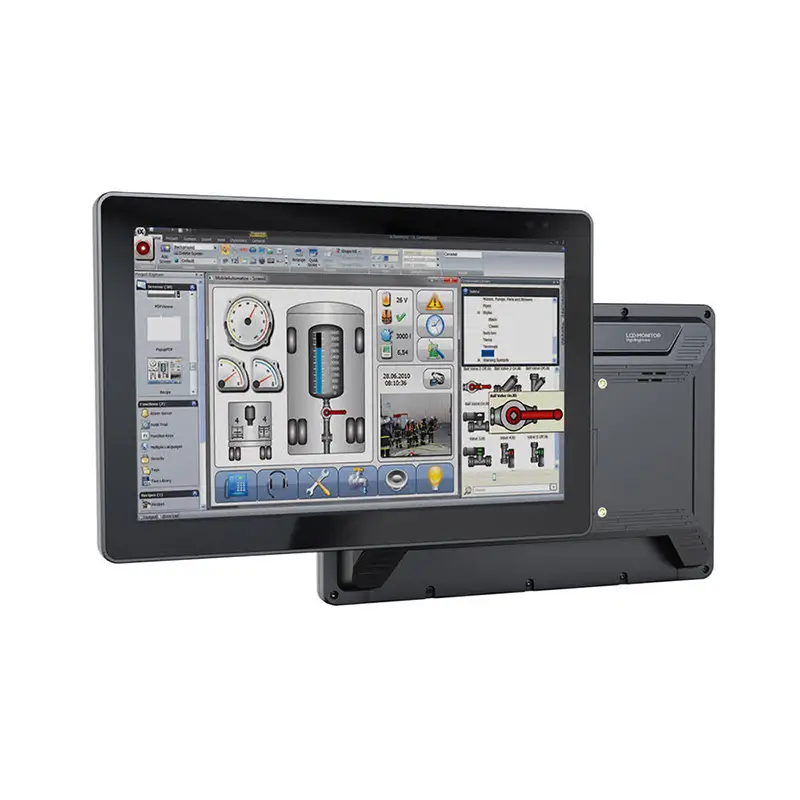

10.1" High Brightness Sunlight Readable Industrial Monitor

This 10.1" 1920*1200 resolution Sunlight Readable Touch Screen Monitor with 1500 Nits high brightness display, Suitable for a wide range of outdoor industrial and commercial applications, this Industrial Monitor comes with and capacitive touch function making it ideal for use in a Kiosk, HMI or other industrial application.

The 10.1" industrial monitor can be installed as either a desktop device for control centers, a built-in monitor and control unit for production line management.

For outdoor installation environments, it can also be availabled with an IP65 design and auto dimming function,  Depending on the intensity of ambient light, the brightness of screen will be automatically adjusted to save power, so it will stand up better in the more rough-and-tumble of environments.

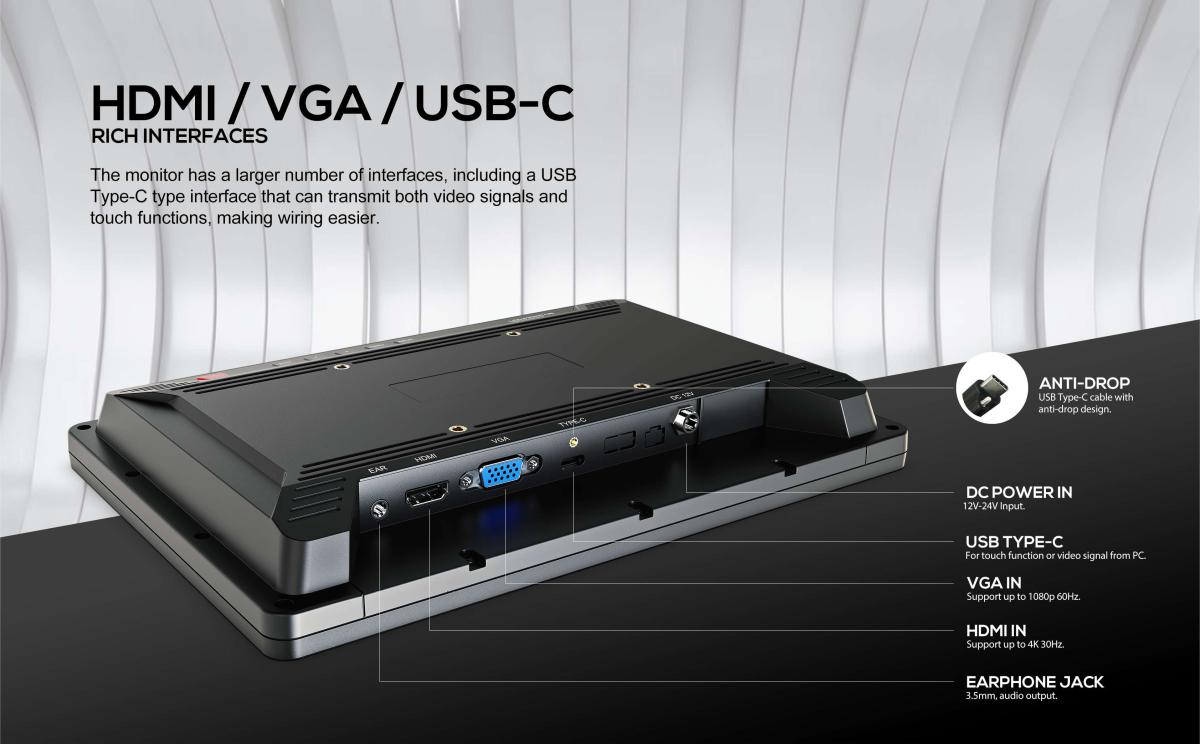

HDMI/VGA/USB-C  RICH INTERFACES
The 10.1" High Brightness monitor has a larger number of interfaces, including a USB Type-C type interface that can transmit both video signals and touch functions,making wiring easier.

IP65 design for option.

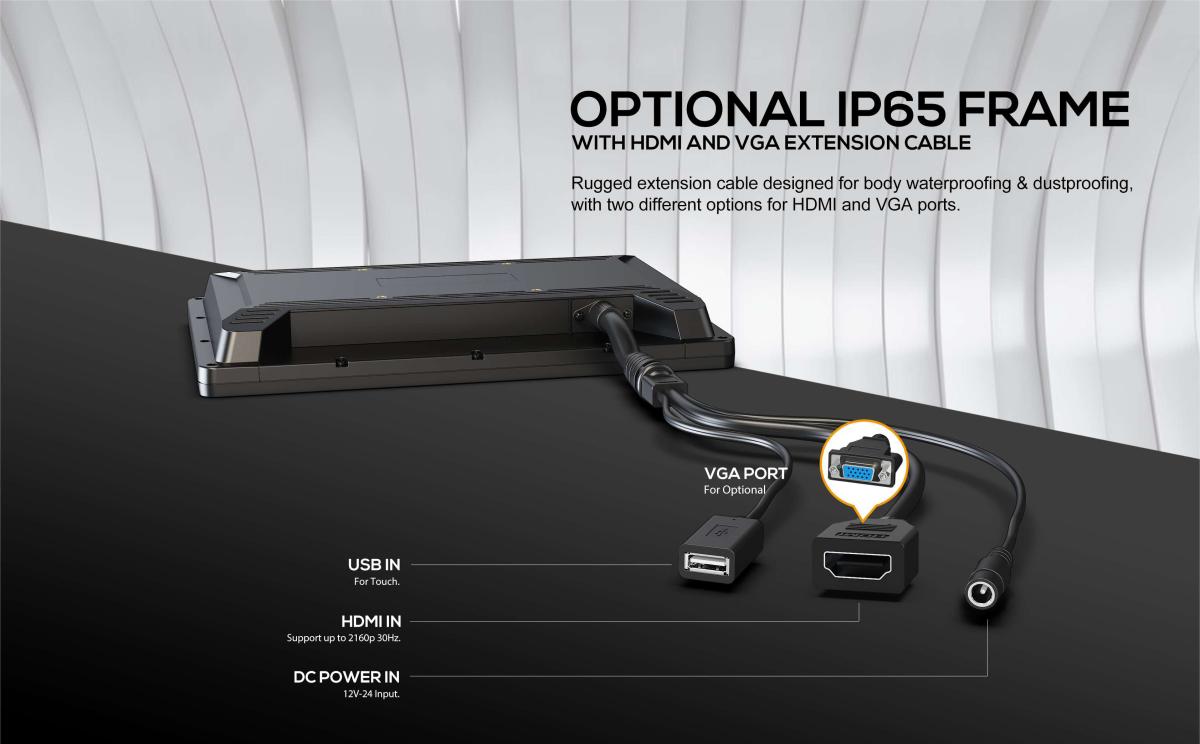

WITH 3-in-in one HDMI AND VGA EXTENSION CABLE
Rugged extension cable designed for body waterproofing & dustproofing, with two different options for HDMI and VGA ports.

Information

Additional description
Model ID:
EB-101TMLP
DISPLAY      Touch Screen Capacitive touch
Panel 10.1” LCD
Physical Resolution 1920×1200
Aspect Ratio 16:10
Brightness 1500 nit
Contrast 1000:1
Viewing Angle 170°/ 170°(H/V)
LED Panel Life Time 50000h
SIGNAL INPUT HDMI 1
VGA 1
USB 1 (USB Type-C)
SUPPORT FORMATS VGA 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
HDMI 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT HDMI 8ch 24-bit
Ear Jack 3.5mm – 2ch 48kHz 24-bit
Built-in Speakers 1
POWER Input Voltage DC 12-24V
Power Consumption ≤19W (12V)
ENVIRONMENT IP65 Rating IP65 (Only available for the monitor with extension cable)
Operating Temperature -20°C~60°C
Storage Temperature -30°C~80°C
OTHER Dimension(LWD) 251mm × 170mm × 33mm

EXTENSION CABLE HDMI Extension Cable HDMI, USB-A (For touch)
VGA Extension Cable VGA, USB-A (For touch)



IP65 Design for option.
